Description

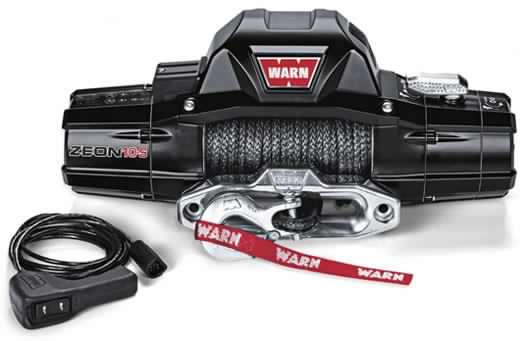

ZEON 10-S SPECS/PART NUMBER
Part number: 89611
Rated line pull: 10,000 lbs. (4536 kg) single-line
Motor: 12V DC, series wound
Electrical controls: Contactor
Remote Control: Remote switch, 12′ (3.7m) lead
Geartrain: 3-stage planetary
Gear ratio: 216:1
Clutch (freespooling): Rotating ring gear
Brake: Automatic mechanical cone
Drum diameter/Length: 3.15″/9.0″ (80mm/229mm)
Weight (kit shipping): 75 lbs. (34 kg)
Rope: 3/8″ x 100′ (9.5mm x 30.5m) Spydura synthetic
Fairlead: Hawse
Recommended Battery: 650 CCA minimum for winching
Battery leads: 2 gauge, 72″ (1.83m)
Finish: Satin-black powder coat
Warranty: Limited lifetime
