Description

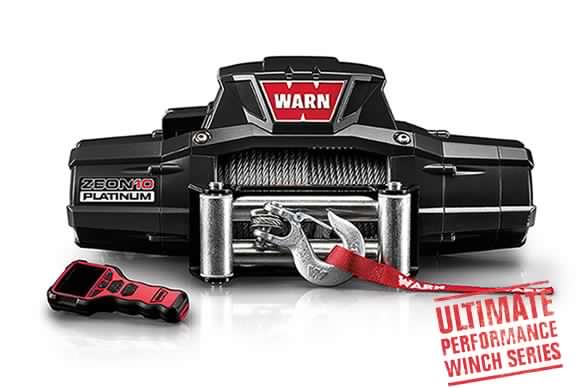

ZEON 10 Platinum SPECS/PART NUMBER
Part number: 92810
Rated line pull: 10,000 lbs. (4536 kg) single-line
Motor: 12V DC? series wound
Electrical controls: Contactor
Remote Control: Advanced Wireless
Geartrain: 3-stage planetary
Gear ratio: 162:1
Clutch (freespooling): Rotating ring gear
Brake: Automatic mechanical cone
Drum Diameter/Length: 3.15″/9.0″ (80mm/229mm)
Rope: 3/8″ x 80′ (9.52mm x 24.38m) steel
Fairlead: Roller
Recommended Battery: 650 CCA minimum for winching
Battery leads: 2 gauge, 72″ (1.83m)
Finish: Satin-black powder coat
Warranty: Limited lifetime
