Description

The Erdvark Hydraulic Reset Chisel Plough is available in 3-Point and Trailed models. The tines have a break away force of 10 kN. The tines working depth is 475 mm but can work in light soils up to 525 mm.The under frame clearance is 725 mm and optional depth control wheels are available. The shanks are fitted with a special knock-on tip that manufactured out of special hardened material with tungsten carbide infused onto the tips. Tine spacing can be set at 300mm, 400mm and 450mm.

1. This Erdvark Hydraulic Reset Chisel Plough is available in 3 point hitch or trailed models.
2. The Chisel Plough has an automatic hydraulic reset system with a tip breakaway force of 10 kN.
3. Recommended working depth on the Hydraulic Reset Chisel Plough is 475 mm, with maximum of 525mm.
4. The Hydraulic Reset Chisel Plough has a under frame clearance of 725mm.

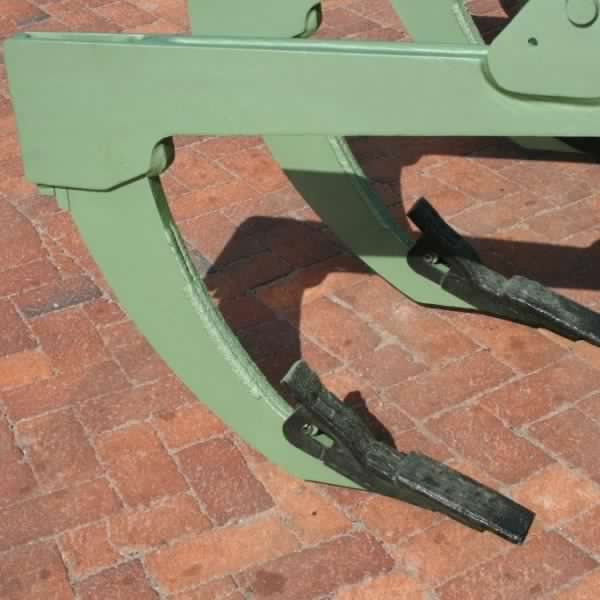

5. The Chisel Plough is fitted with special hardened tungsten carbide knock on tips.
6. Depth control wheels are available as an additional option.
