Description

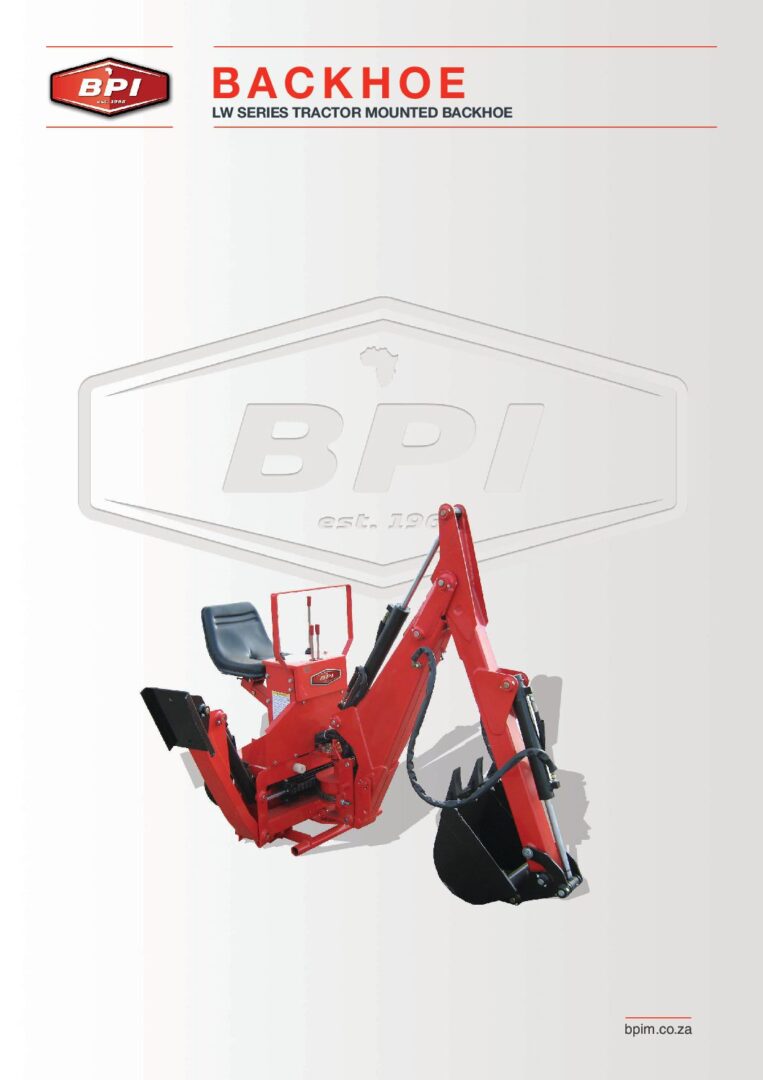

This 1.7m Backhoe has a maximum digging depth and loading height of 1.7m. The loading reach
is 2.7m, and the stabiliser spread in the down position is 1.85m. The bucket cylinder digging force
is 1150kg, and the dipper stick cylinder force is 850kg. The weight of this model with the bucket is
450kg. Finally, the recommended kilowatt for this model is 15-25kW. If you need a model that is
slightly larger, choose the MBHLW8. This tractor Backhoe attachment is our 2.6m model and has
a maximum digging depth of 2.6m, and a loading height of 2. 5m. The loading reach is 3.4m, and
the stabiliser spread in the down position is 2.0m. The bucket cylinder digging force is 1300kg,
and the dipper stick cylinder force is 950 kg. The weight of this model with the bucket is 540 kg.
The recommended kilowatt for this model is 35-58kW. Our largest model is the MBHLW10. This
three-point hitch Backhoe attachment measures 3.0m. The maximum digging depth is 3.0 m, and
the model has a loading height of 2.7m. The loading reach is 3.9m, and the stabiliser spread in the
down position is 2.1m. The bucket cylinder digging force is 1400kg, and the dipper stick cylinder
force is 1300kg. The weight of this model with the bucket is 700kg. The recommended kilowatt for this
model is 60-90kW. The MBHLW10 is also available in a side shift option – the MBHLW10E – which
has a 2.0m width side shift frame, and side shift allows a 600mm travel to either side. The weight of
this model with the bucket is 900kg. The recommended kilowatt for this model is 70-100kW. Each
Backhoe for tractor model features a swing arc of 180 degrees and a bucket rotation of 160 degrees
