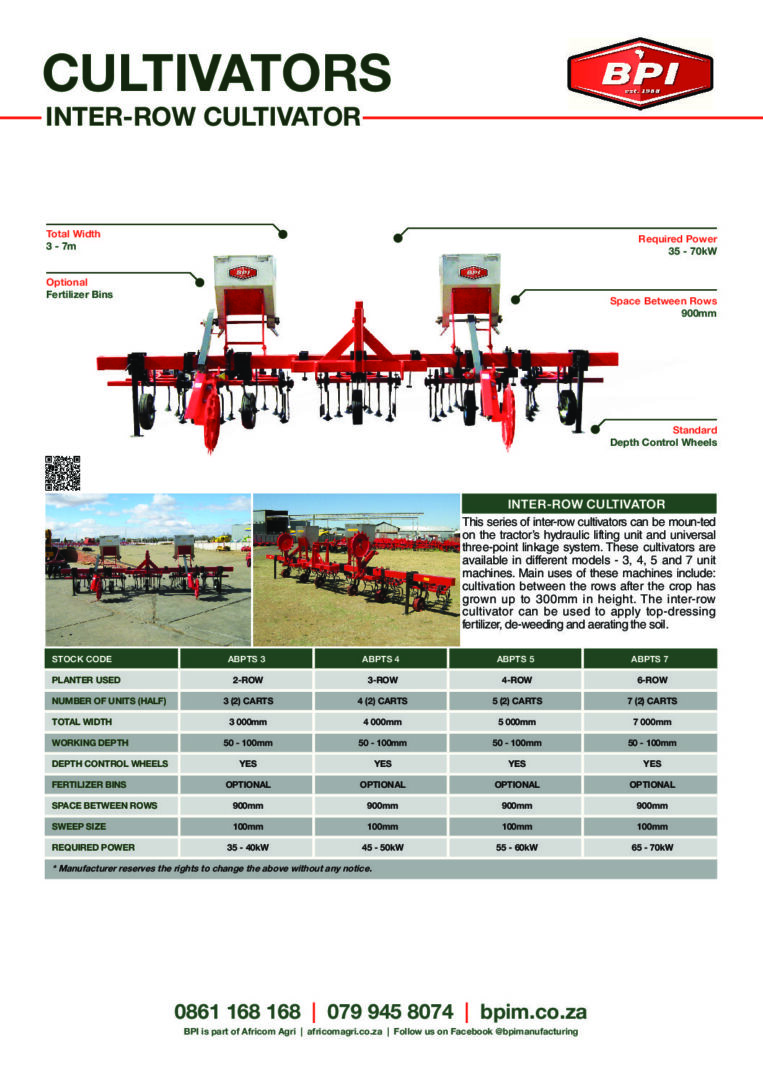

BPI INTER ROW CULTIVATOR WITH FERTILIZER BINS

BPI INTER ROW CULTIVATOR WITH FERTILIZER BINS

Close-up of a lime spreader machine in action on a farm.
STOCK CODE ABPTS3 ABPTS4 ABPTS5 ABPTS7
PLANTER USED 2 ROW 3 ROW 4 ROW 6 ROW
NUMBER OF UNITS(HALF) 3 (2) CARTS 4 (2) CARTS 5 (2) CARTS 7 (2) CARTS
TOTAL WIDTH 3 000mm 4 000mm 5 000mm 7 000mm
WORKING DEPTH 50-100mm 50-100mm 50-100mm 50-100mm
DEPTH CONTROL WHEELS YES YES YES YES
FERTILIZER BINS OPTIONAL OPTIONAL OPTIONAL OPTIONAL
SPACE BETWEEN ROWS 900mm 900mm 900mm 900mm
SWEEP SIZE 100mm 100mm 100mm 100mm
REQUIRED POWER 35-40kW 45-50kW 55-60kW 65-70kW

Description

  • This series of Inter Row Cultivators can be mounted from the tractor?s hydraulic lifting unit and universal three-point linkage system
  • Cultivators available in different models. The models are 3, 4, 5 and 7 unit machines
  • Main uses is to cultivate between the rows after the crop has grown up to 300mm in height. The Inter Row Cultivator can be used to apply top-dressing fertilizer to promote growth, maximizing yield potential, de-weeding and aerating the soil
  • Because of loose top soil, reception of moisture is higher, penetrating the soil effectively
  • Protection shoulder plates protects young plants during soil cultivation
  • Individual depth-control can be adjusted according to the plant size and user preference whilst independent moving units keep the working depth stable on uneven land
  • The centre units are full carts, the side carts are half carts that prevents the cultivator unearthing plants that are not planted 900mm apart
