Description

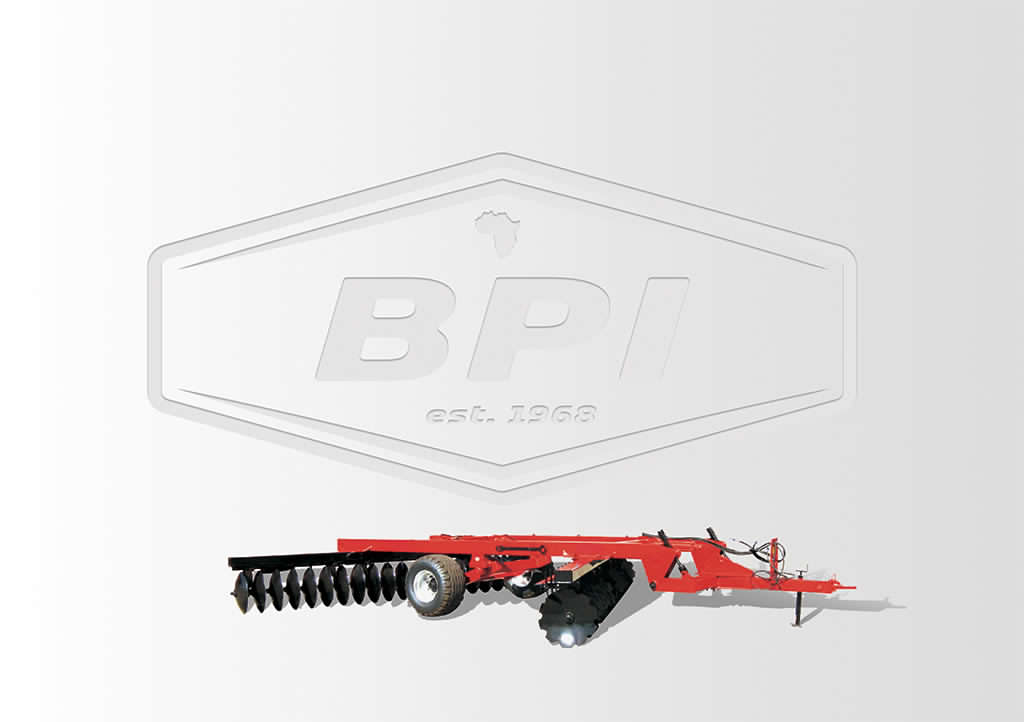

• The Extra Heavy Duty type Offset Disc Harrow is a trailed type on two wheels
• This extra heavy duty Offset is available in sizes from 40-44 discs with a working depth of 150-250mm
• This machine has adjustable disc gangs
• The T-Rex weighs in at 125kg per disc
• The AOFEHD 44 has a total weight of 5.3 tons with excellent soil penetration
• The frame and gang carrier is manufactured out of rectangular tubing. The gang bolt is 45mm high The heavy duty offset disc harrow has tension steel with grease housing bearings.
• Trailed type on two wheels
• Moved by a hydraulic system for transport and depth adjustment
• Many different functions: chop residue left on the land after harvesting, mix residue with soil after harvesting creating organic fertilizer and to even out land after ploughing or disking allowing rain to penetrate the soil easily
• Adjustable disc gangs – levelling or cutting the land
• Heavy duty bearings
• Gang shifts are high tension steel
• Robust cast iron spacers
• Scalloped disc configuration on the front gangs and plain discs on the rear gangs
