Description

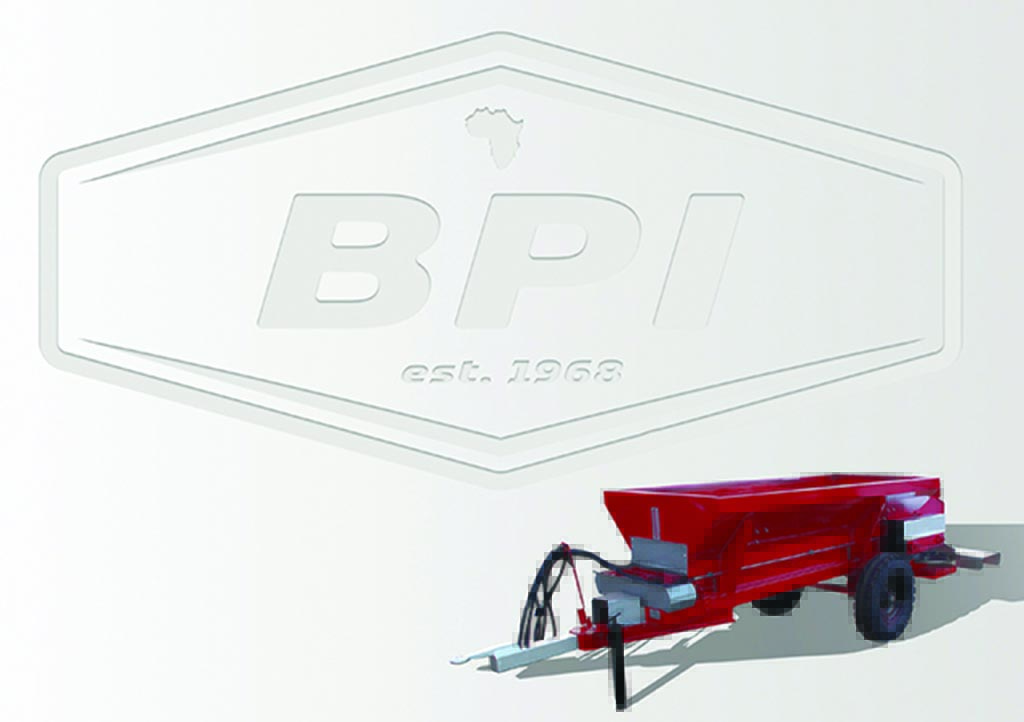

The ARES 2-3.5 TON Spreader is a single axle trailed spreader. There are two options available in the ARES range. The standard model uses the tractor?s PTO for the drivetrain on the spinner discs. The spinner discs on the upgrade model is powered by a hydraulic system. This ARES has been equipped with a removable bridge. The feeder chains are powered by means of tyre application and uses a hydraulic clutch system for engaging or disengaging the feeder chains. The standard model has a bin capacity of ?2 TON – adding an extension box, the capacity increases to ?3.5 TON.

The ARES has a spreading width of up to 24m (granular fertilizer). The ARES has a minimum fertilizer calibration of 55kg per hectare and up to 6 000kg per hectare for lime and gypsum. The ARES is capable of spreading fertilizer, lime, gypsum, or dry, organic, sieved material. The standard model ARES is designed especially for the fruit industry, (less space to work in).

• Discharge gate mounted at the rear is manually set
• Two settings on sprockets for more refined calibration options
• Spinner discs are manufactured with 3CR12 material, for more durability
• The upgrade model with hydraulic powered spinner discs has a small turning circle
• The option for a row guide is also available
• Two Height settings on tow bar

The removable belly chain base plate, when worn out, can be replaced easily. Color choices are available to match any tractor brand. The ARES, being a locally manufactured product, ensures a constant availability of parts and assistance when required.
