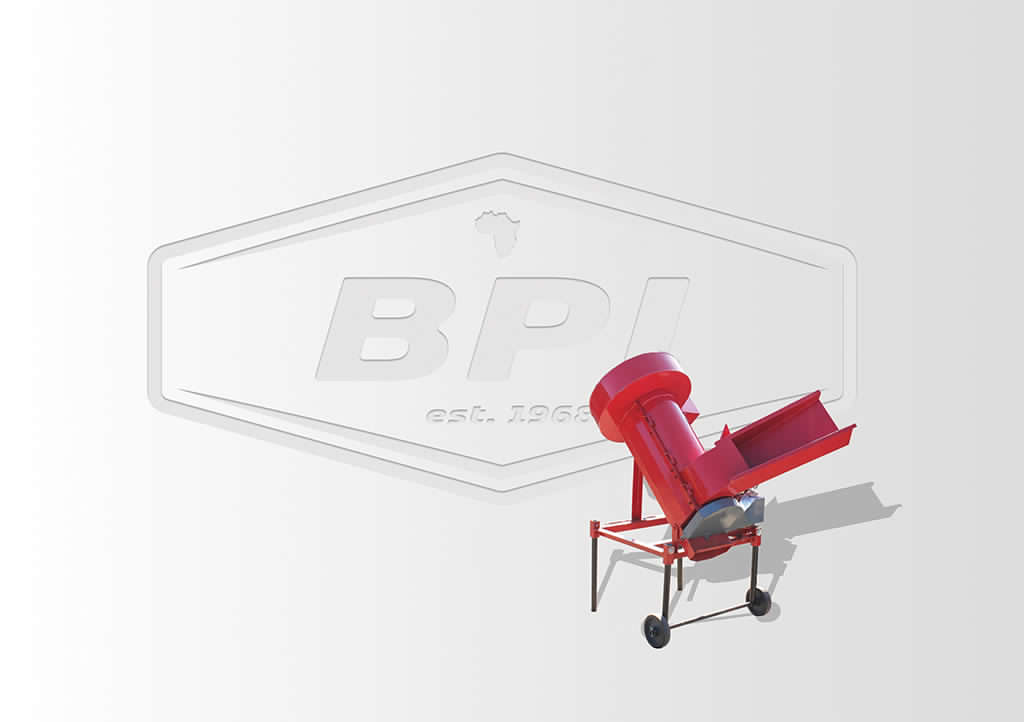

BPI 1000 MMM THRESHING MACHINE

BPI 1000 MMM THRESHING MACHINE

Close-up of a lime spreader machine in action on a farm.
STOCK CODE 1000 MMME 1000 MMMP 1000 MMMD
WIDTH 1 000mm 1 000mm 1 000mm
HEIGHT 1 090mm 1 090mm 1 090mm
(feet removed) (feet removed) (feet removed)
LENGTH 1 200mm 1 200mm 1 200mm
WEIGHT 40kg 40kg 40kg
DRIVEN ELECTRIC MOTOR PETROL MOTOR DIESEL MOTOR
ROTOR SPEED (ADJUSTABLE) 420-1500r/min 420-1500r/min 420-1500r/min
ENGINE POWER 2.2kW 4.7kW 4.7kW
CAPACITY (MAIZE) 1 ton/h 1 ton/h 1 ton/h
CAPACITY (SORGHUM) 750kg/h 750kg/h 750kg/h
CAPACITY (SUNFLOWER) 400kg/h 400kg/h 400kg/h
CAPACITY (SOYBEANS 400kg/h 400kg/h 400kg/h
CONCAVE SIEVE HOLE DIAMETER (MAIZE) 19mm 19mm 19mm
CONCAVE SIEVE HOLE DIAMETER (SORGHUM) 6mm 6mm 6mm
CONCAVE SIEVE HOLE DIAMETER (SUNFLOWER) 12mm 12mm 12mm
CONCAVE SIEVE HOLE DIAMETER (SOYBEANS) 12mm 12mm 12mm
BEATER TYPE Flat Plate Flat Plate Flat Plate
BEATER ADJUSTMENT 10-30mm 10-30mm 10-30mm

Description

The 1000 MMM model works on the same principal as the 170 model but is more compact and easier to move around, even on the back of a pick-up truck. This model is ideal for sustainable farmers in rural areas. The machine is available in an electric driven, petrol or diesel engine driven, thus can be operated anywhere without having a tractor available. The cleaning action is done through an angled rotor with adjustable beater bars and a blower mounted on the cleaning rotor that blows out any unwanted material, which ensures that the end product of threshed crop is clean. Cleaned crop falls through the standard fitted threshing drum, concave sieves surrounding the cleaning rotor, into a bag attached to the bag attachment unit, at the bottom of the machine.
